SPECIFICATIONS

After Warranty Service: Video technical support

Application: Cleaning Machine

Frequency: 28KHz

Keyword: Ultrasonic Vibration Transducer

MOQ: 1 Piece

Material: stainless steel and aluminum

Power: 60Watt

Product name: Ultrasonic Transducer

Use: Ultrasonic Cleaning Equipment Components

Voltage: peak to peak 700v-1000v

condition: New

name: ultrasonic cleaner sensor

place of origin: Guangdong, China

type: Ultrasonic Transducer

warranty: 6 Months

weight (kg): 1

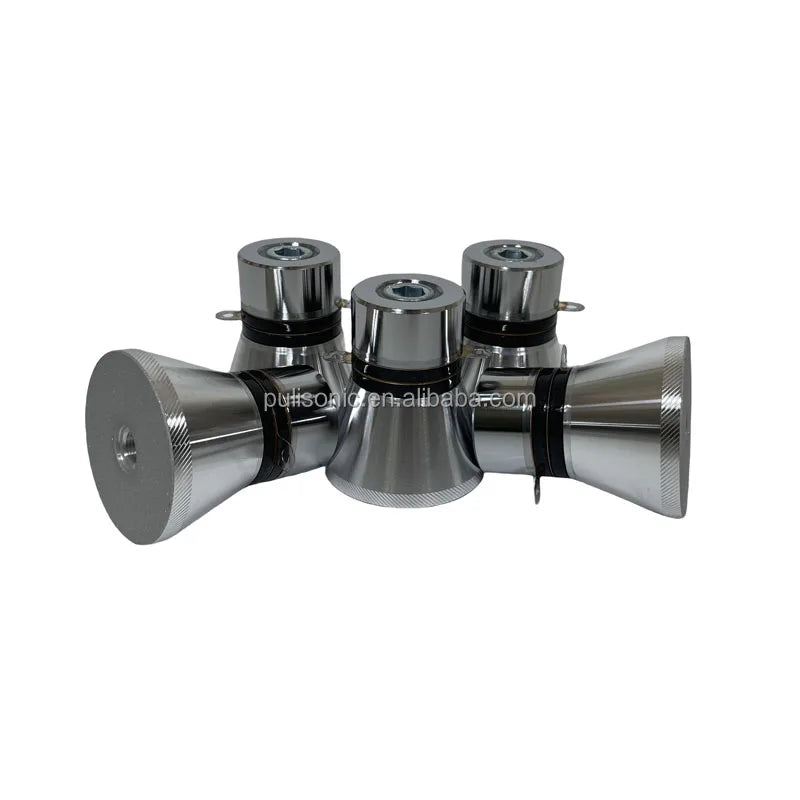

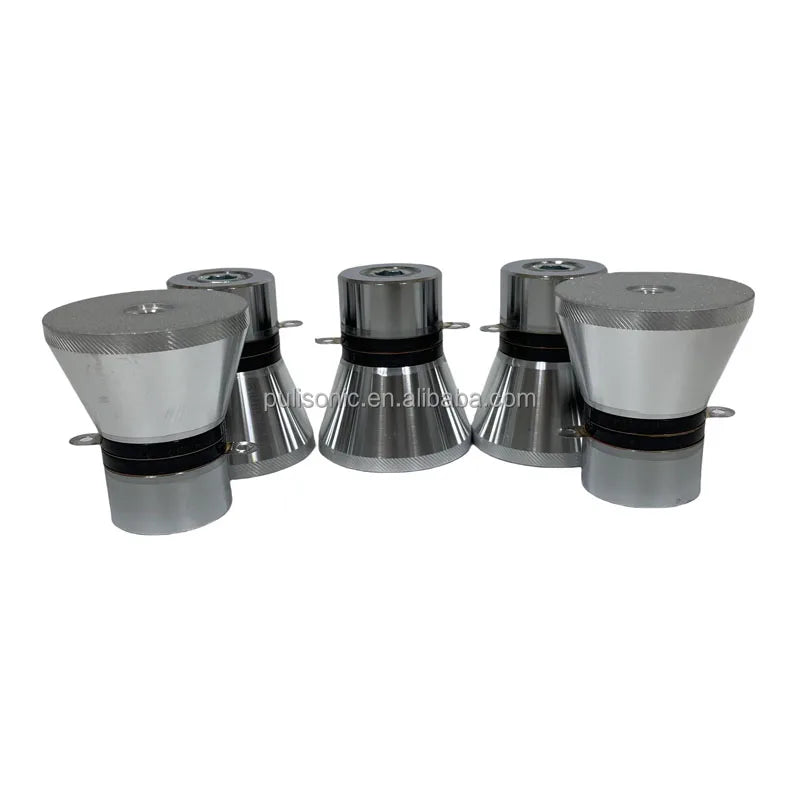

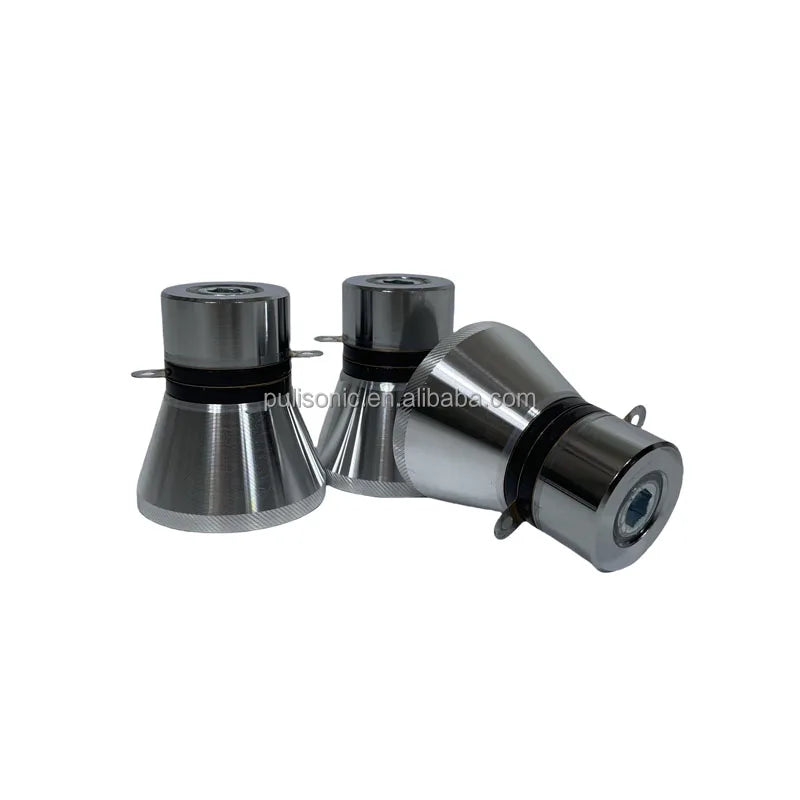

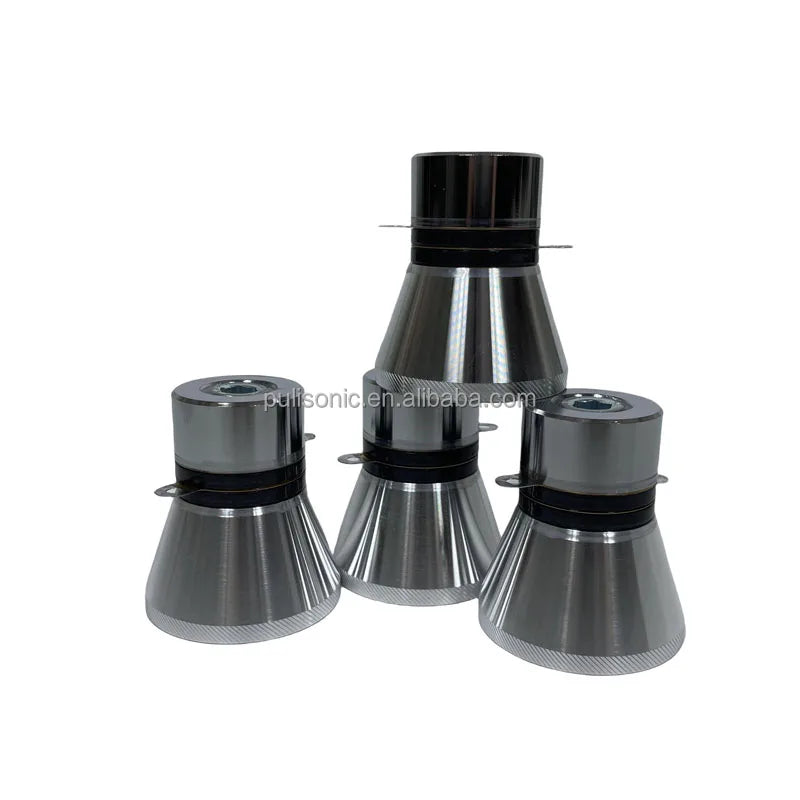

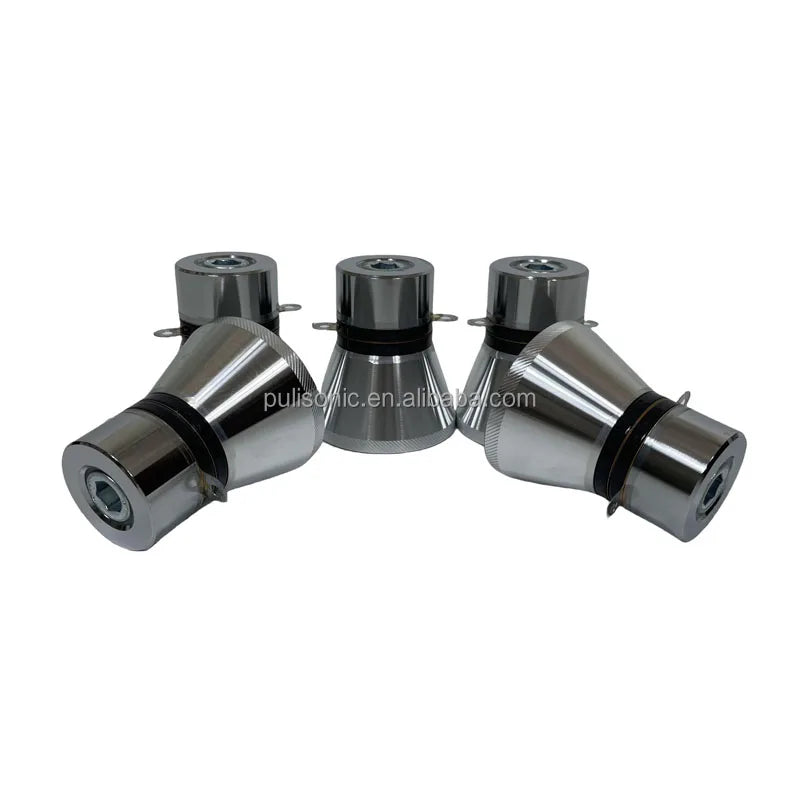

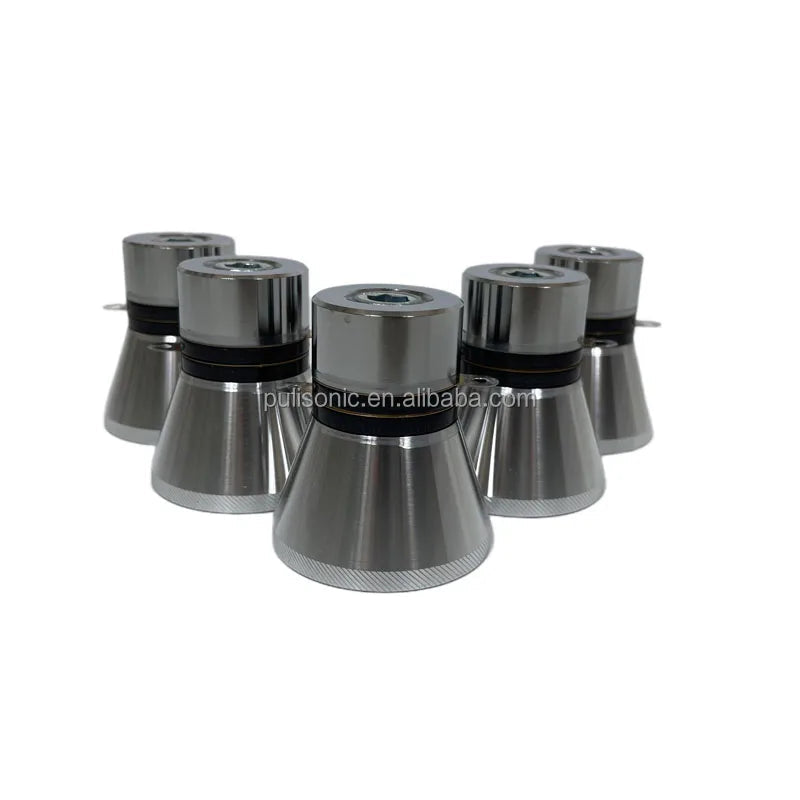

60W 28KHZ Piezo Vibrator  For Ultrasonic Hardware Parts Cleaning Machine And Ultrasonic Dish Washing Machine

Introduction to Ultrasonic Transducer:

Ultrasonic vibrator, also known as ultrasonic vibrating head, ultrasonic vibrating head, is a kind of ultrasonic transducer and the core component of ultrasonic cleaning machine. We call the whole after connecting ultrasonic transducer and horn as vibrator. Ultrasonic transducer is one of the important components in ultrasonic cleaning machine and ultrasonic vibration plate, which largely determines the quality of ultrasonic wave.
Based on years of experience in ultrasonic cleaning, our company provides professional ultrasonic transducers with stable quality, high-efficiency output and moderate price, combined with the opinions and feedback of the majority of users.
The ultrasonic transducer is a device that converts high-frequency electrical energy into mechanical vibration. The high-frequency electrical energy input by the ultrasonic generator matches the piezoelectric ceramic sheet with the resonant frequency of the ultrasonic transducer, and the electrical energy is converted by the piezoelectric effect of the material. It is converted into mechanical vibration, that is, ultrasonic vibration, and then transmitted to the water medium through the ultrasonic transducer, forming negative pressure bubbles and shock waves in the water, and transmitting it in the tax-based solution to achieve the effect of cleaning the surface of the workpiece. The transducer is mainly composed of aluminum block, piezoelectric ceramic sheet and insulating layer.
Ultrasonic vibrators (ultrasonic transducers) such as 28KHZ/40KHZ/25KHZ/68KHZ/80KHZ/120KHZ/200KHZ are widely used in electronics industry, machinery industry, automobile, electroplating, chemical fiber, optics, bearing and other industries. Such as cleaning magnetic cores, oil nozzles, auto parts, electroplating hardware tools, chemical fiber spinnerets, optical lenses, bearings, tools, tableware, medical equipment, precision hardware, watch parts, gold and silver jewelry, electronic components. This frequency has strong vibration and uniform density, which can quickly achieve the purpose of oil removal, sodium removal, decontamination, and scale removal. In addition, it can also be used in chemical experiments to achieve catalysis, stirring, and rapid generator chemical reactions. Wait.

Its advantages are summarized as follows:
(1) The cleaning speed is fast, the cleaning effect is good, the cleanliness is high, the cleanliness of the workpiece is consistent, and there is no damage to the surface of the workpiece.
(2) It is safe and reliable to clean deep holes, slits and hidden parts of workpieces without manual contact with the cleaning liquid.
(3) Save solvent, heat energy, workplace and labor, etc.
(4) It has high cleaning precision and can powerfully clean tiny dirt particles.

Principles of ultrasonic vibrator arrangement:
(1) Cleaning of different product arrangements has different requirements, such as the degree of oil pollution of the product, the difficulty of cleaning, the level of cleaning requirements, and the design of the cleaning process, all require targeted selection.
(2) The arrangement of the vibrator is not as much and as dense as possible, and the proper one is the best.

Steps to install the ultrasonic vibrator and preparation tools:
1. Preparation tools: argon arc welding, No. 10 Allen wrench, ferrochrome tin wire, 2.5 square high temperature wire, appropriate amount of 2*2.5 cable, vibrator glue, (stripping pliers, casing, cable ties, sandblasting machine, pipe fittings, etc.).
2. Welding screws: Calculate the arrangement position of the vibrator, weld the screws on the cleaned position, and then clean the surrounding area of the screws, making sure to make them flat so as not to affect the installation of the vibrator.
3. Glue configuration: mix the glue evenly according to the specified proportion. (Merui, Araldite, and 4030 glue are mixed before bonding, and KMD398 glue is mixed during bonding).
4. Install the vibrating head: spread the glue evenly on the bottom of the ultrasonic vibrator, and squeeze out the air and excess glue between the contact surface of the bottom of the transducer and the bottom of the cylinder by gently twisting, so that the vibrator is more closely integrated with the stainless steel as a whole .
5. Curing and condensation: curing in a place with a relatively high room temperature, it can be wired for 4-8 hours, and the test machine can be powered on after 24 hours. The test machine is absolutely not allowed to vibrate.
Remarks: 1. A metal seed nailing machine can also replace argon arc welding. 2. The welding screw must be fully welded, otherwise it will easily fall off. 3. Regarding curing, the temperature should be considered for the length of time. If the temperature is low, the time will be long. If the temperature is high, it will be faster. It is recommended to operate at room temperature. Even if it is heated, do not overheat it.
